system introduction:
The electronic belt scale is an ideal equipment for continuous measurement of the belt transportation system. It has the characteristics of advanced design, simple structure, accurate weighing, smooth application, convenient operation, and low maintenance. It is not only suitable for traditional environments, but also for acid , alkali, salt and atmospheric corrosion environment. Widely used in metallurgical industry, electric power engineering, coal, concrete, chemical plants, decorative building materials and other fields.
Structure and basic principles:

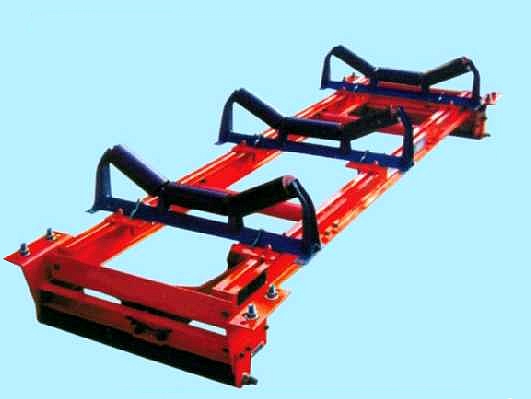

The equipment is mainly composed of a stable frame, a weighing structure, a support base, a tension pressure sensor and an instrument (or computer). When the belt conveyor transports materials, the weight of the material is transmitted to the sensor through the weighing frame, and the instrument (or computer) Computer) automatically calculates and processes the weight signal into a flow signal and displays it, and accumulates the total amount. This belt scale can be used for multiple weighing machines, that is, one host machine can be equipped with multiple weighing racks.
Technical Parameters:
Applicable belt: 500mm2000mm.
Weighing capacity: w6000t\/h.
Measuring accuracy: W±1 percentage (cumulative amount).
Application temperature: -2060 degrees Celsius.
Installation tilt angle: W18 degrees.
Instantaneous flow: Kg\/min (420mA).
t pulse: set as desired (NPN.CE junction).
