Basic principles of construction:
Wire rope cleaning lubricator is an efficient and convenient solution for wire rope lubrication.
This system integrates cleaning and lubrication. It can not only clean the previous stains on the surface of the steel wire rope, but also pour new lubricant into the interior of the steel wire rope at high pressure and apply it to the surface of the steel wire rope, squeezing the inside of the steel wire rope. Air and moisture have the function of preventing rust and lubricating, greatly extending the service life of the wire rope, greatly saving downtime, and improving production efficiency.

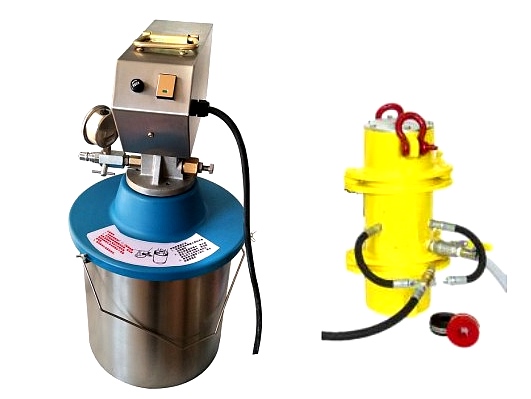

The system consists of sealing components suitable for various wire rope sizes, wire rope clamps, wire rope concave groove cleaning heads, high-pressure grease pump units, pipelines, etc.
Put the high-pressure plunger pump into a standard grease bucket. The lubricant in the bucket is injected into the wire rope clamp by the high-pressure grease pump through the high-pressure oil pipe. The high-pressure lubricant can pass through the wire rope and fully lubricate the wire rope. Oil supply amount Calculated based on the size and running speed of the wire rope, the pressure regulating valve can be used to adjust. This ensures that the wire rope is fully lubricated and the lubricant is not wasted. It is a very scientific, reasonable, safe, efficient and applicable lubrication. Way.
Performance characteristics:
1. High-pressure grease supply, penetrating lubrication, strong penetration, no failure, equipped with a spiral wire rope brush, which can effectively remove contaminants on the surface of the wire rope and increase the amount of lubricant penetration.
2. Economical and efficient: The pressure lubrication method can adjust the amount of oil according to the amount, without causing a waste of lubricant. At the same time, this type of lubrication method can be carried out at the same time as work, and is extremely efficient.
3. Easy to install and light in weight: The oil injection component is reasonably designed and light in weight. Just open it in half and clamp the wire rope to lock it. The installation and operation are easy, and it only takes about a few dozen seconds for two people to operate.
4. Output lubricant according to the amount, no waste, zero pollution, and adjustment saves time and effort.
5. Long life design: a set of seals can lubricate at least 3,000-6 kilometers, and other components can be used for a long time without replacing any spare parts. The service life can be as long as 30 years.
Testing proves: A 22mm steel wire rope with a plastic sleeve is used in the open air. If it is not lubricated, it may completely rust and cannot be used in just 8 months. However, using our wire rope lubrication equipment for lubrication can increase the use of the wire rope. The service life is more than 2 times. Ensure that the steel wire rope is fully lubricated and increase the service life of the steel wire rope.
System parameters:
Applicable wire rope diameter: 3-97 mm
Pressure: 12 MPa
Wire rope running speed: 15-30M\/MIM
Applicable oil drums: 15KG-50KG
Applications:
