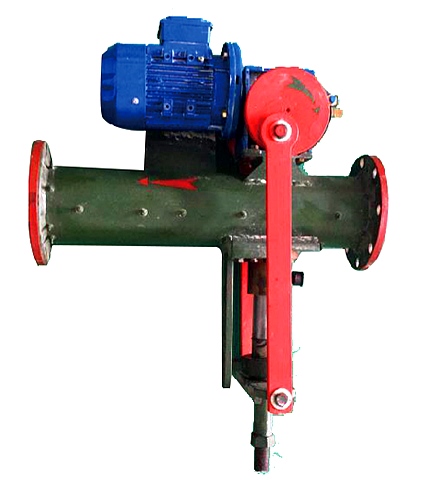

automatic samplerIt uses a protection-free design. It can operate for a long time without protection and is not easily blocked by impurities such as discarded fuses, detonating tubes and packaging bag mesh, and does not leak. The following is an introduction to the adjustment procedures of the relevant samplers.
After the assembly of the sampling machine is completed, after the wiring is connected according to the wiring requirements and there are no problems, the equipment can be adjusted and tested. For manual turning, the sampling spoon can be simply adjusted to the middle position, and then the main switch is turned on. , the display light will turn on at this time. Place the PLC system control button in the RUN position. After ten seconds, the motor will rotate. At this time, the sampling spoon should run at an angle away from the transmission mechanism (motor), or a person can stand on the side of the motor and observe that the motor should move counterclockwise. Otherwise, interchange the two cables connected to the motor. When adjusting the motor wiring of the automatic sampler, be sure to wait for 5 minutes after the power supply is turned off and the inverter indicator light goes out before proceeding. After the angle is adjusted, It can be put into trial operation. When the sampling spoon runs to one end and stops, its parking position should be in the gap outside the sampling area to ensure that no slurry enters after the sampling spoon stops at one end. The parking position of the sampling spoon can be adjusted according to the assembly position of the adjusting sensor. Position. The vertical storage position of the sensor and the control board should be between 2-4 mm.
